Three Phase Common Mode Inductor Coil Winding Machine

Embark on an era of precision winding with Santong Weiye's Three Phase Common Mode Inductor Coil Winding Machine. As an advanced supplier and factory deeply rooted in Shenzhen's innovation landscape, we bring cutting-edge technology to the forefront. With over 15 years of expertise, our team has meticulously designed a machine that sets new standards in winding precision.

Model:3T-805

Send Inquiry

Product Description

Santong Weiye's commitment to excellence is exemplified in our Three Phase Common Mode Inductor Coil Winding Machine. This advanced solution showcases seamless automation, precise winding capabilities, and superior quality. As your trusted partner, we provide innovative solutions that meet the dynamic needs of industries.

Step into the future of industrial technology with Santong Weiye. Our Three Phase Common Mode Inductor Coil Winding Machine represents a paradigm shift in winding efficiency, making us the preferred choice for businesses seeking advanced, reliable, and precise winding solutions.

1. 3T-805 three phase common mode inductance coil winding machine is a very practical and effective equipment for making inductance and transformer coils. It can wind flat coils of various shapes and specifications.

2. 3T-805 three phase common mode inductance coil winding machine is easy, convenient and fast to debug, and only needs to replace the mold;

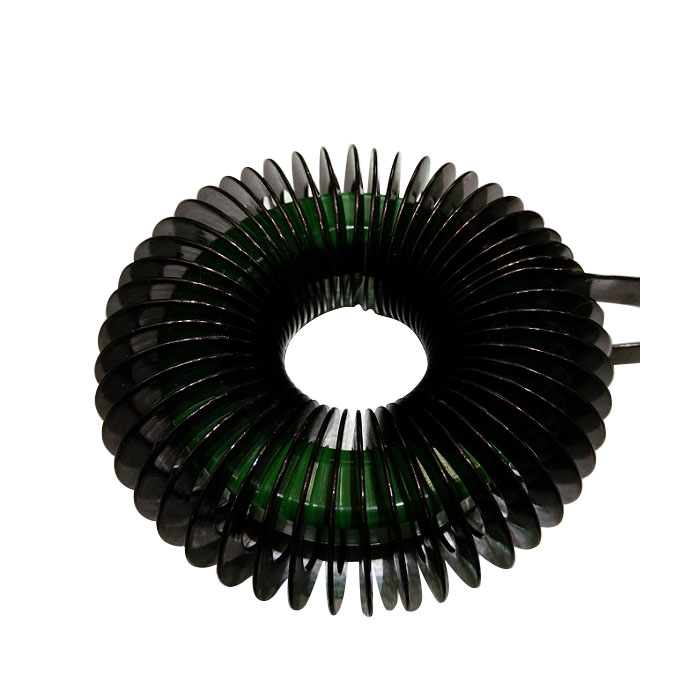

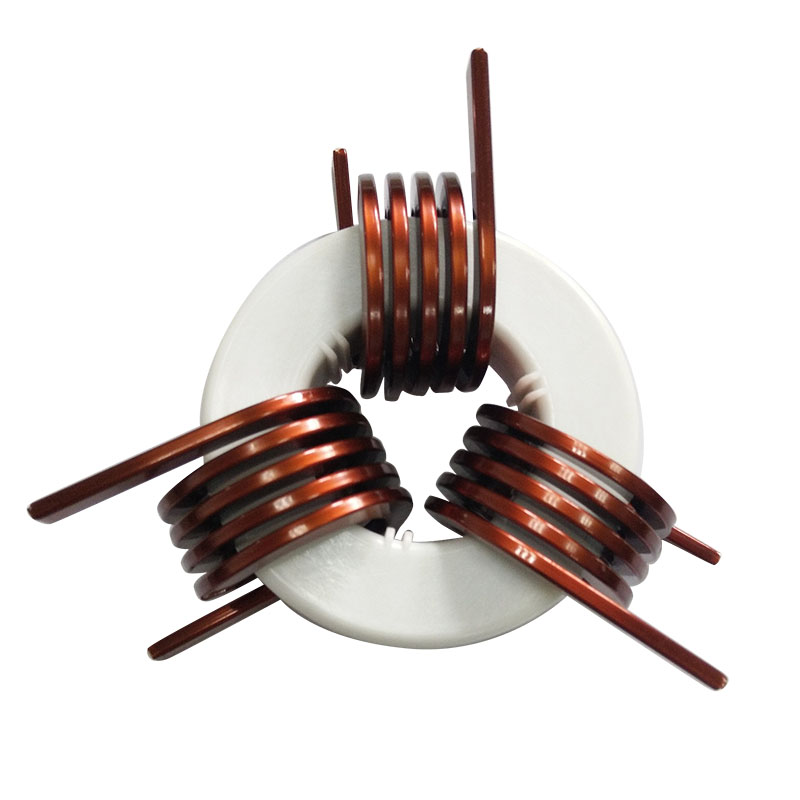

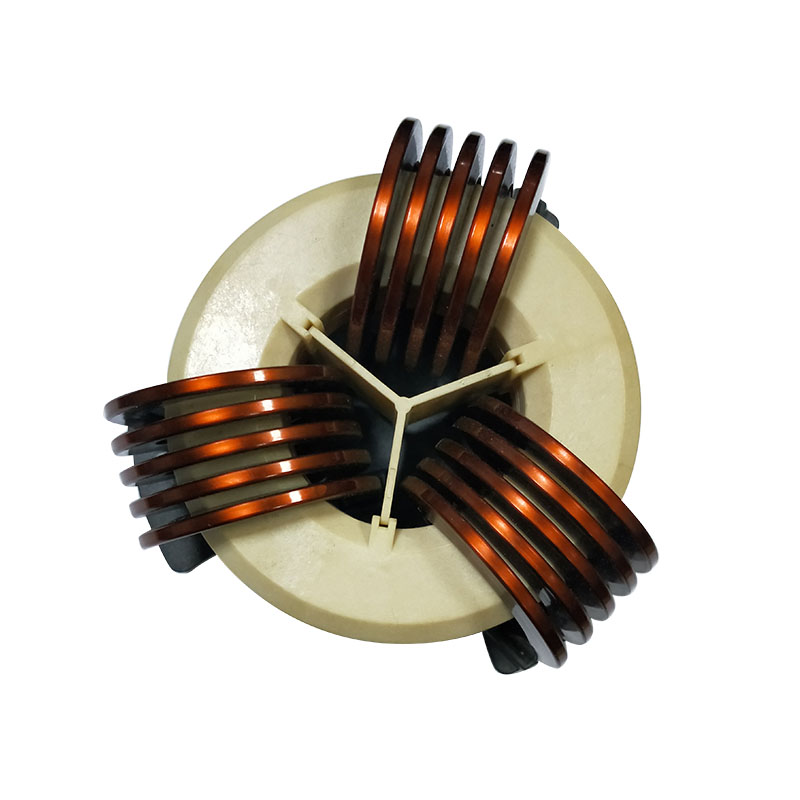

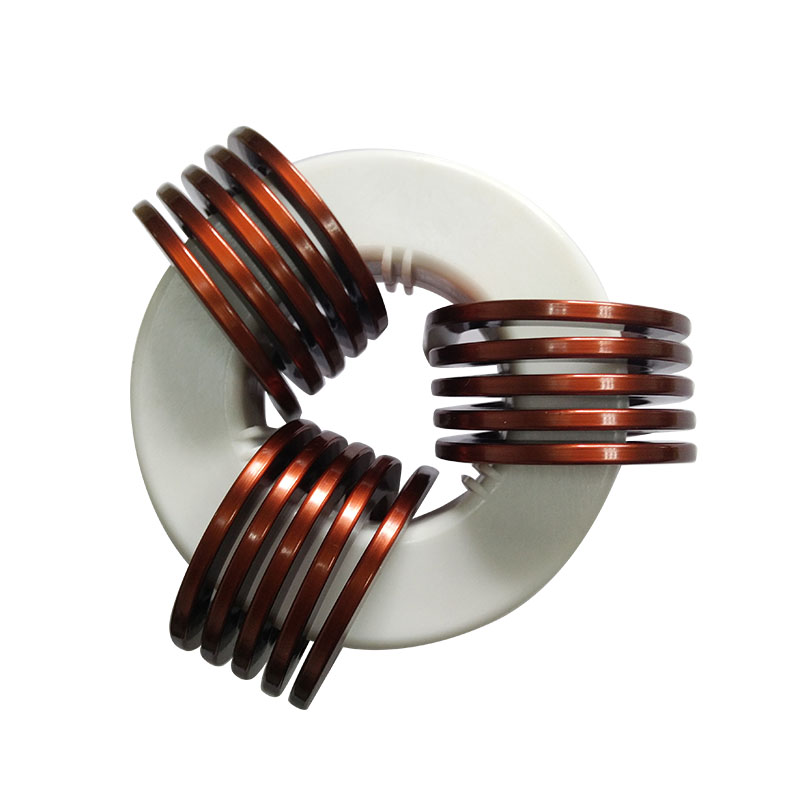

3. 3T-805 three phase common mode inductance coil winding machine is controlled by computer and driven by servo. It can produce various magnetic ring flat coil products with thickness of 1mm to 6mm and width of 2.0mm to 12.0mm (wire sectional area is less than 50 square mm);

4. 3T-805 three phase common mode inductance coil winding machine is used to debug wires of the same specification. It does not need to change the mold, but only needs to adjust the parameters;

5. 3T-805 three phase common mode inductance coil winding machine needs only to replace the mold for debugging wires of different specifications;

6. Windos operation interface and 12 inch LCD display are adopted, with clear and intuitive picture and simple operation Ease of learning;

7. 3T-805 three-phase common mode inductance coil winding machine can save the adjustment parameters of various specifications of products, which is simple and convenient to use;

8. The power system is a high-precision servo motor, which is matched with the CNC control system to make the mechanical system operate more accurately and stably;

Technical Parameters

Serial number	Project	Technical parameters
1	Processing wire diameter	Thickness (1~6mm) * width (2.0~12) The width/thickness ratio of flat line is less than 5 times, and the sectional area of wire is less than 50 mm2
2	direction of winding	Clockwise versus counterclockwise
3	Maximum working stroke of the row of wires	200mm
4	The power of the spool motor, the	AC servo 1000W
5	The power of the spool feeder motor	AC servo 7500W
6	Feed spool setting range	0.1°--359.9°
7	Power of the motor of the pallet axis	AC servo 400W
8	pallet axis setting range	-20--8000
9	Number of coils	1-100 laps
10	Winding speed (output per hour)	50-1200 PCS/H will vary according to the wire specifications and turns
11	Operating power supply	AC 380V
12	Machine specification (LWH)	220013001900mm
13	Machine weight	750kg
14	Total power	8KW (can be customized according to different requirements)
