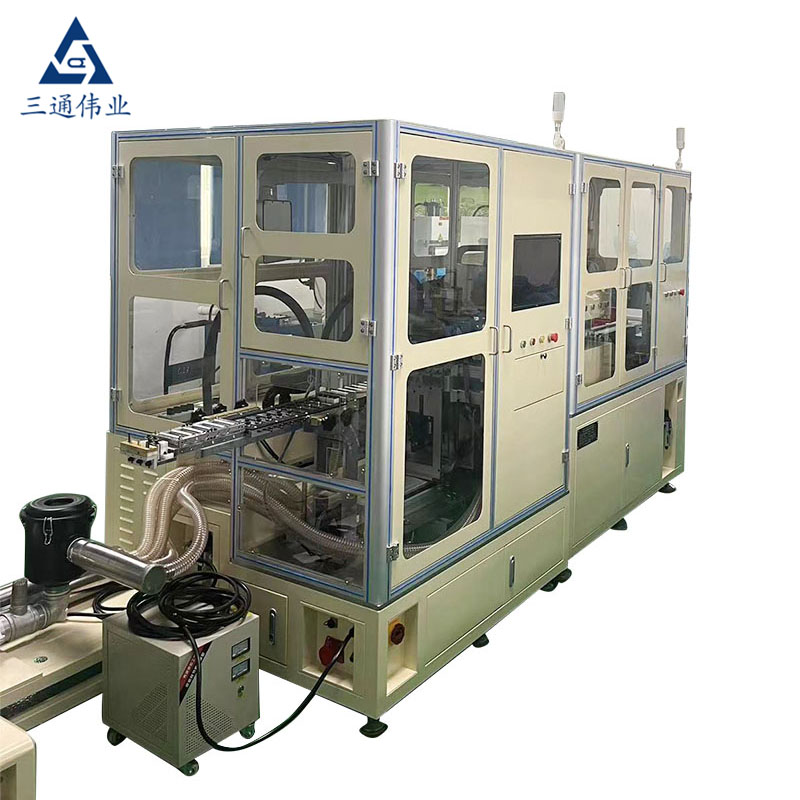

SQ Common Mode Inductance Coil Winding Machine
  • SQ Common Mode Inductance Coil Winding MachineSQ Common Mode Inductance Coil Winding Machine

SQ Common Mode Inductance Coil Winding Machine

Experience unparalleled precision in coil winding with Santong Weiye's SQ Common Mode Inductance Coil Winding Machine. As an advanced supplier and factory rooted in the innovation hub of Shenzhen, we bring cutting-edge technology to the forefront. Backed by over 15 years of expertise, our team has meticulously crafted a machine that redefines standards in winding efficiency.

Model:3T-817

Send Inquiry

Product Description


Santong Weiye's commitment to excellence shines through in our SQ Common Mode Inductance Coil Winding Machine. This advanced solution showcases seamless automation, precise winding capabilities, and superior quality. As your trusted partner, we provide innovative solutions that cater to the evolving needs of industries.

Step into the future of industrial technology with Santong Weiye. Our SQ Common Mode Inductance Coil Winding Machine represents a paradigm shift in winding efficiency, making us the preferred choice for businesses seeking advanced, reliable, and precise winding solutions.



1. 3T-817 SQ common mode inductance coil winding machine is a very practical and effective equipment for making common mode inductance. It can wind common mode inductance coils of different shapes and specifications.

2. 3T-817 SQ common mode inductance coil winding machine is easy, convenient and fast to debug, just need to replace the mold;

3. 3T-817 SQ common mode inductance coil winding machine is controlled by computer and servo driven. It can produce various magnetic ring flat coil products with thickness of 0.2mm to 2.5mm and width of 1mm to 3mm

4. 3T-817 SQ common mode inductance coil winding machine is used to debug wires of the same specification. It does not need to change the mold, but only needs to adjust the number of turns;

5. 3T-817 SQ common mode inductance coil winding machine needs only to replace the mold for debugging wires of different specifications;

6. Windos operation interface and 12 inch LCD display are adopted, with clear and intuitive picture and simple operation Ease of learning;

7. It can save the parameters of each specification product, and it is easy and convenient to call

8. The power system is a high-precision servo motor, which is matched with the CNC control system to make the mechanical system operate more accurately and stably;

Product Details

Serial number

Project

Technical parameters

1

Processing wire diameter

Line thickness (0.2~2.5) Line width (1~3)

2

direction of winding

Clockwise versus counterclockwise

3

The power of the spool motor, the

AC servo 4.6KW

4

power of the pick-up shaft motor

AC servo 1.2KW

5

Winding spool setting range

0.1°--359.9°

6

Number of coils

1-50

7

Winding speed (output per hour)

100-900PCS/H will be different according to different wire specifications and turns

8

Operating power supply

AC three-phase 220V

9

Machine specification (L*W*H)

5201mm*1523mm*1710mm

10

Total power

5.8KW

11

Remarks

Priority: add laser peeling function


Hot Tags: SQ Common Mode Inductance Coil Winding Machine, China, Manufacturers, Suppliers, Factory, Quality, Customized
