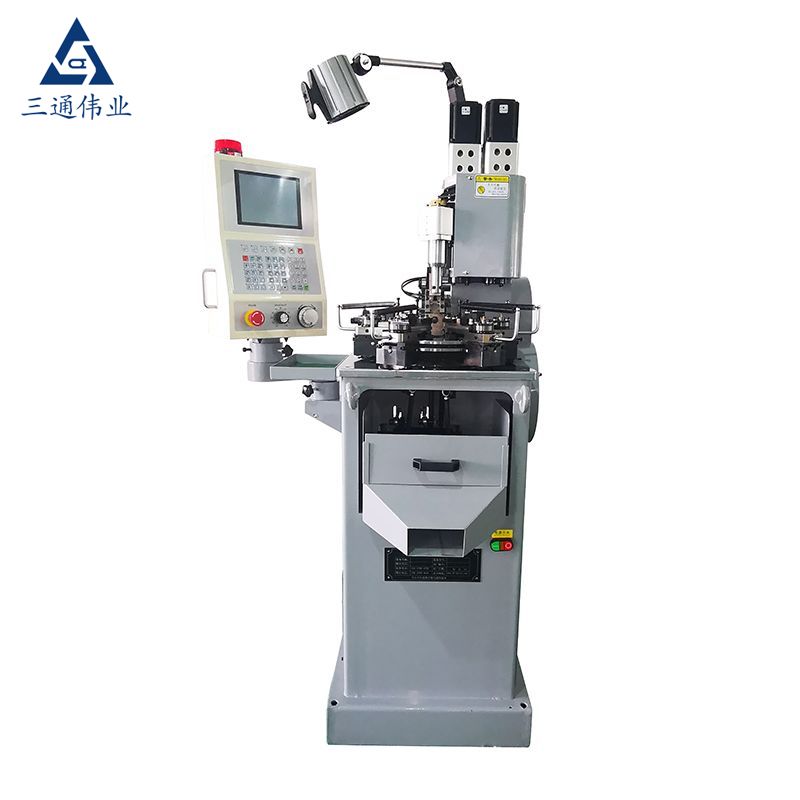

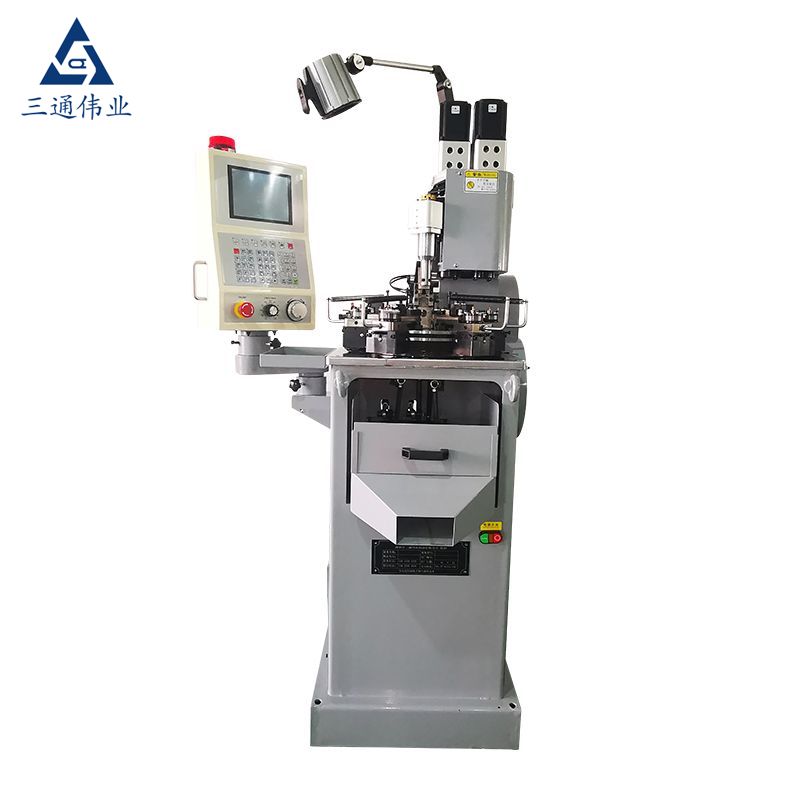

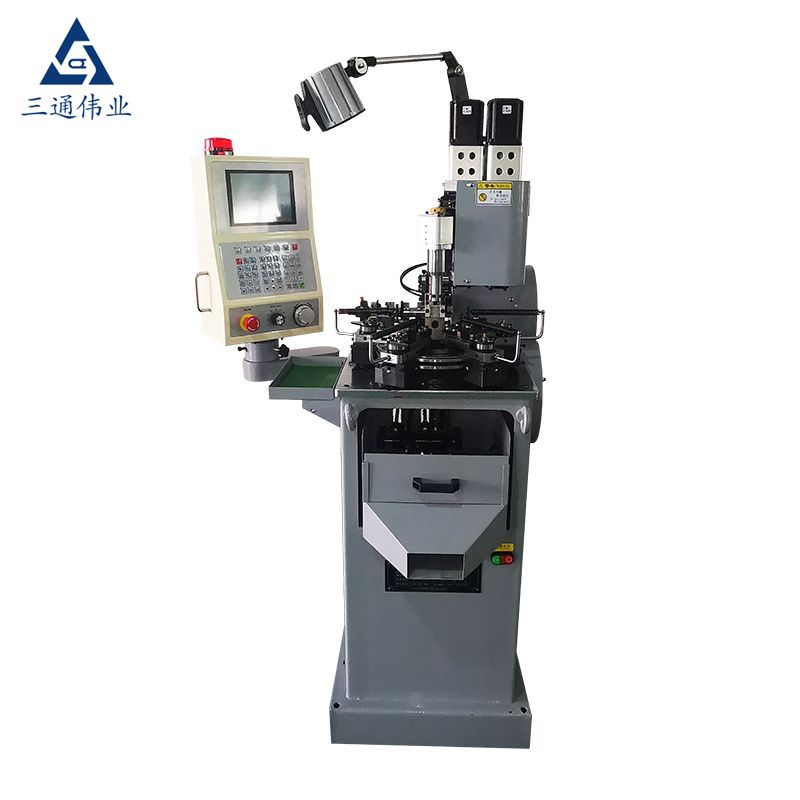

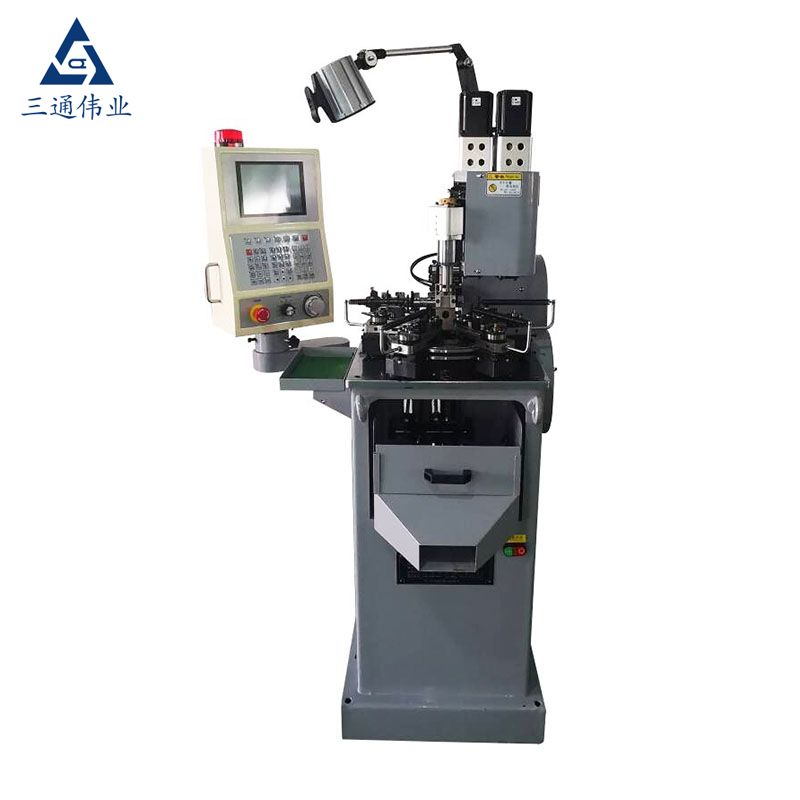

R Core Winding Machine
  • R Core Winding MachineR Core Winding Machine
  • R Core Winding MachineR Core Winding Machine
  • R Core Winding MachineR Core Winding Machine
  • R Core Winding MachineR Core Winding Machine

R Core Winding Machine

At Santong Weiye, we are proud to offer the R Core Winding Machine as a solution that combines innovation, precision, and efficiency. For all your R-shaped core winding needs, trust Santong Weiye Technology Co., Ltd. to provide a reliable and advanced solution.


Send Inquiry

Product Description

Shenzhen Santong Weiye Technology Co., Ltd., a leading name in automation equipment and coil manufacturing, introduces the R Core Winding Machine—a state-of-the-art solution for precision winding of R-shaped cores. Established in 2014 and headquartered in the innovation-driven city of Shenzhen, our company has been a pioneer in delivering cutting-edge technology for over a decade.

Five Reasons to Choose Us

1. rich experience: We have a group of 20 years of coil, winding machine and automation equipment experience of the technical team, we have accumulated a wealth of industry experience and technical knowledge. Our professional team is always committed to providing customers with the best quality products and services to ensure that customers get the maximum value in the production process.

2. quick response: We provide one-stop service, can meet the personalized needs of customers in a short time. Our sales and technical support teams are on call 24 hours a day to solve various problems for customers and ensure the smooth operation of the production line.

3. high-quality products: We produce winding machine with high quality, high performance, high stability and other characteristics, by Huawei, DJI, BYD, Solaredge, Tamura and other well-known enterprises favor. Our equipment can not only meet the production needs of customers, but also bring higher production efficiency and product quality for customers.

4. in-depth customization services: We provide a full range of customized services, according to the actual needs of customers, tailor-made for customers the most suitable winding machine solutions. Our engineers work closely with our customers to ensure that the performance and functionality of the equipment fully meet their expectations.

5. perfect after-sales service: We attach great importance to customer after-sales service experience. We provide comprehensive after-sales support, including equipment installation, commissioning, training, maintenance and other services. Our professional technical team will solve problems for customers in the first time to ensure the normal operation and use of equipment.

R Core Winding Machine Details

Shenzhen Sandong Weiye Technology Co., Ltd. was founded in 2014 in Shenzhen, Guangdong, China, which enjoys the "innovation capital". In 2019, the production plant was moved from Shenzhen to Tangxia, Dongguan. Many of the company's technical backbone have more than 15 years of working experience in winding equipment and laser equipment. Shenzhen Sandong Weiye Technology Co., Ltd. is a set of winding machine equipment and flat coil research and development, production, sales, service in one of the automation equipment and coil manufacturers, our flat coil products, vertical winding machine and automation equipment with good quality and competitive prices, covering part of the European and American markets. We look forward to being your long-term partner in China.

1. 3T-801A R bar round coil winding machine is a very practical and effective equipment to do inductors and transformers coil, can wind a variety of different shapes and specifications of flat coils.

2. 3T-801A R rod round coil winding machine debugging is simple, convenient, fast, only need to replace the mold;

3. 3T-801A R rod round coil winding machine using computer control, servo drive, can produce 0.2-2.0 diameter of a variety of round wire coil, can achieve peeling tin integration operation.

4. spindle using high precision CNC lathe processing and vacuum precision straightening treatment, accuracy up to 0.01mm, the production line is more stable;

5. 3T-801A R rod round coil winding machine motion multi-station control, flat coil can be automatically formed on the machine;

6. 3T-801A R rod round coil winding machine adopts windos operation interface, 10 inch LCD screen, clear picture, intuitive, simple operation and easy to learn;

7. can save the adjustment parameters of various specifications of products, simple and convenient call;

8. The power system is a high-precision servo motor, which is matched with CNC control system to make the mechanical system run more precise and stable;

9. 3T-801A R rod round coil winding machine from the design source control, easy to operate and debug personnel;

R Core Winding Machine Parameter





Machining wire diameter

Round copper wire with diameter Φ0.2-- 2.0mm


Winding direction

Clockwise and counterclockwise


Maximum working travel of 3 lines



Winding motor power

AC servo 750W


Set the range around the spool



camshaft motor power

AC servo 1500W


Set the range around the spool



row spool motor power

AC servo 750W


row spool setting range



Number of winding coils

1-100 laps


Winding speed (output per hour)

350 --1200PCS/H varies according to wire specifications and number of turns


Working power supply

AC 220V


Machine specifications (L * W * H)



Machine weight



Total power
