The Multi Strand Alpha Coil Winding Machine made in Shenzhen Santong Weiye Technology Co., Ltd. is an innovative solution designed to meet the complex demands of modern manufacturing processes. This advanced piece of equipment, crafted with precision and expertise, is a testament to our commitment to excellence at Santong Weiye.

Our team, with over 20 years of collective experience in the coil, winding machine, and automation equipment industry, has leveraged its rich technical knowledge to engineer a cutting-edge solution. The Multi Strand Alpha Coil Winding Machine stands out for its ability to handle multiple strands simultaneously, offering increased efficiency and productivity in coil winding applications.

This machine's high quality, superior performance, and exceptional stability have earned it recognition from industry leaders, including renowned enterprises such as Huawei, DJI, BYD, and more. We take pride in delivering not only a product that meets production needs but also one that enhances overall production efficiency and elevates product quality.

Five Reasons to Choose Us:

1. Decades of Expertise: With a seasoned technical team boasting 20 years of collective experience in coils, winding machines, and automation equipment, we've cultivated a reservoir of industry wisdom and technical prowess. Our unwavering commitment to excellence ensures that customers benefit from unparalleled quality and services, maximizing value throughout their production processes.

2. Rapid Responsiveness: Operating on a 24/7 basis, our dedicated sales and technical support team offers a streamlined, one-stop service tailored to meet the unique needs of each customer promptly. This ensures swift problem resolution and guarantees the seamless operation of production lines at all times.

3. Exemplary Product Quality: Renowned for our production of winding machines characterized by superior quality, high performance, and unwavering stability, we've garnered recognition from industry giants such as Huawei, DJI, BYD, and others. Our equipment not only meets but exceeds customer production needs, elevating production efficiency and product quality to unprecedented levels.

4. Tailored Customization Excellence: Our comprehensive customization services go beyond meeting customer expectations. By closely collaborating with clients, we tailor winding machine solutions to precisely match their unique requirements. Our engineers work hand-in-hand with customers to ensure that the equipment's performance and functionality fully align with and surpass customer expectations.

5. Unmatched After-Sales Dedication: The post-purchase experience is paramount to us. We place great emphasis on providing comprehensive after-sales support, encompassing equipment installation, commissioning, training, maintenance, and more. Our professional and technical team is poised to resolve any issues promptly, ensuring the seamless and optimal operation of equipment for our valued customers.

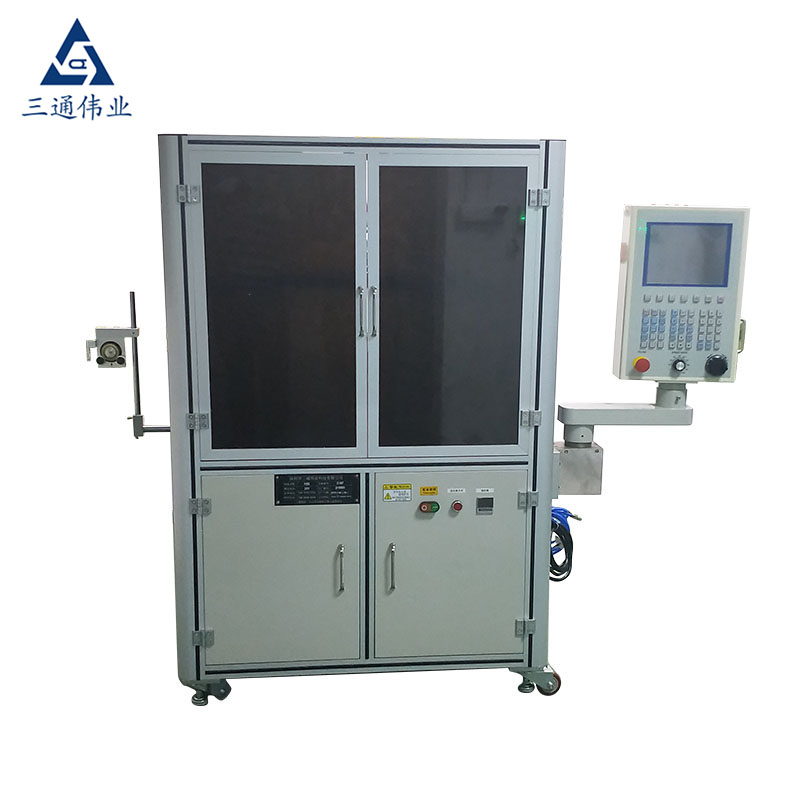

Multi Strand Alpha Coil Winding Machine Details

Shenzhen Santong Weiye Technology Co., Ltd. was founded in 2014 in Shenzhen, Guangdong Province, China, which enjoys the title of "Capital of Innovation", and the production factory was moved to Tangxia, Dongguan, from Shenzhen in 2019, the company has a number of technical backbone with more than 15 years of experience in the work of the winding equipment and laser equipment, Shenzhen Santong Weiye Technology Co. Ltd. is a manufacturer of automation equipment and coils integrating R&D, production, sales and service of coil winding machines and flat coils, our flat coil products, vertical coil winding machines and automation equipment have good quality and advantageous price, covering part of the European and U.S. markets. We are looking forward to be your long-term partner in China.

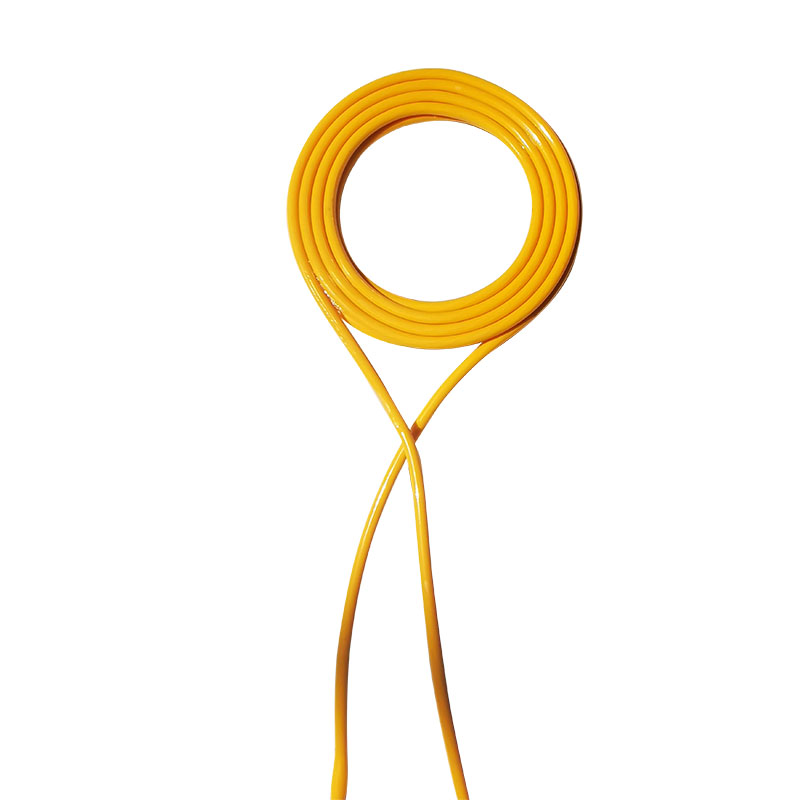

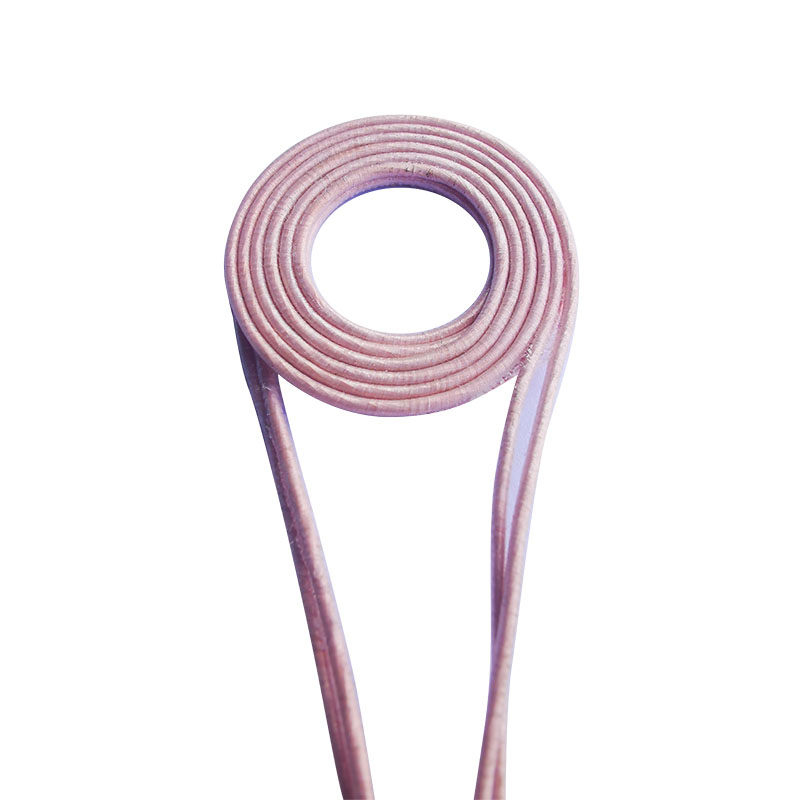

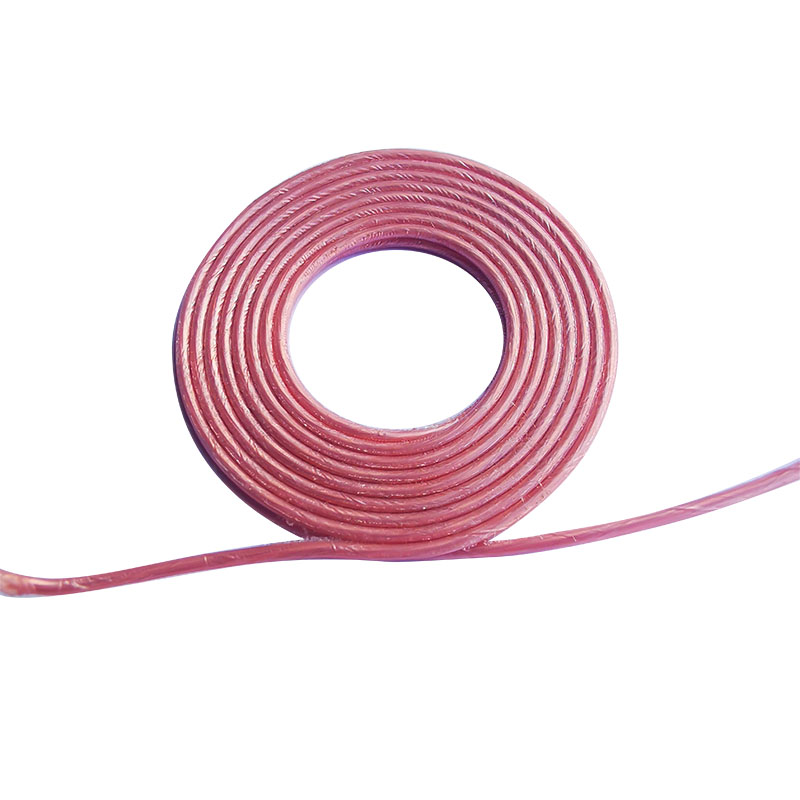

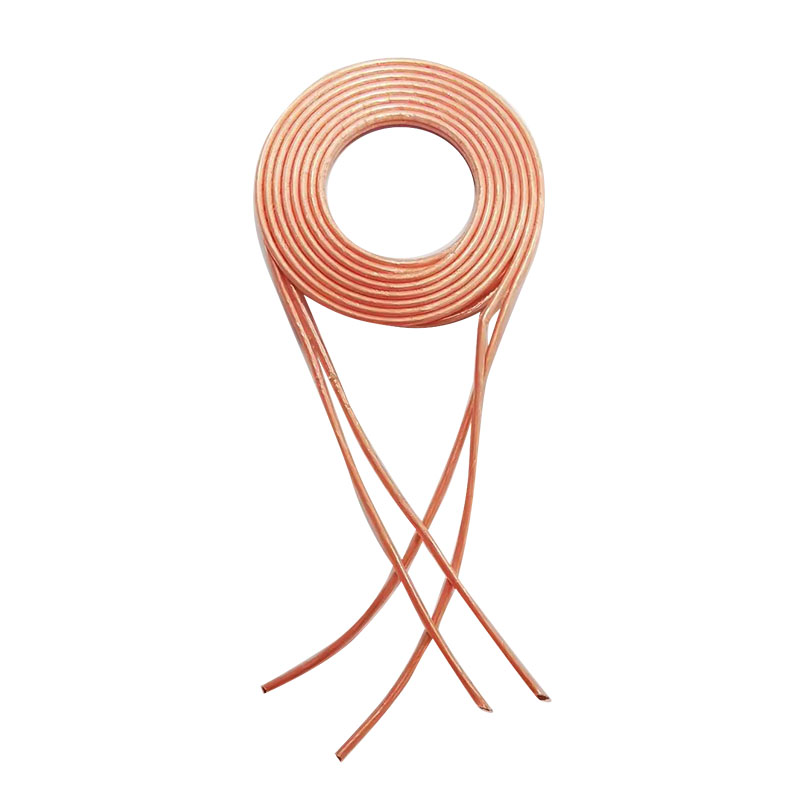

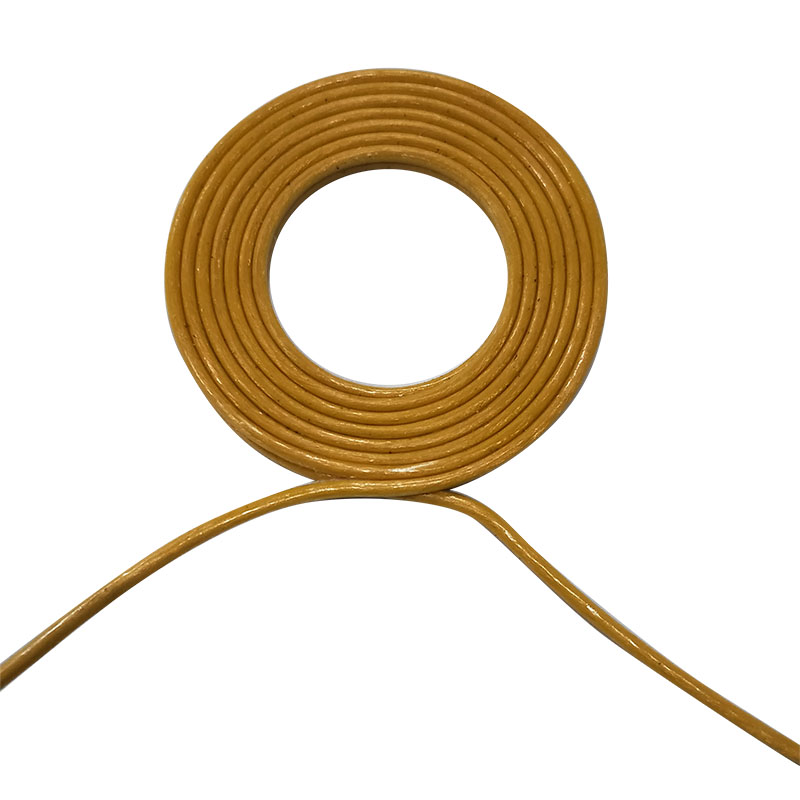

1. 3T-807A multi strand alpha coil winding machine (outer winding machine) is a very practical and effective equipment for making inductance and transformer coils. It can wind flat coils of various shapes and specifications.

2. 3T-807A multi strand alpha coil winding machine (outer winding machine) is simple, convenient and fast for debugging, and only needs to replace the mold;

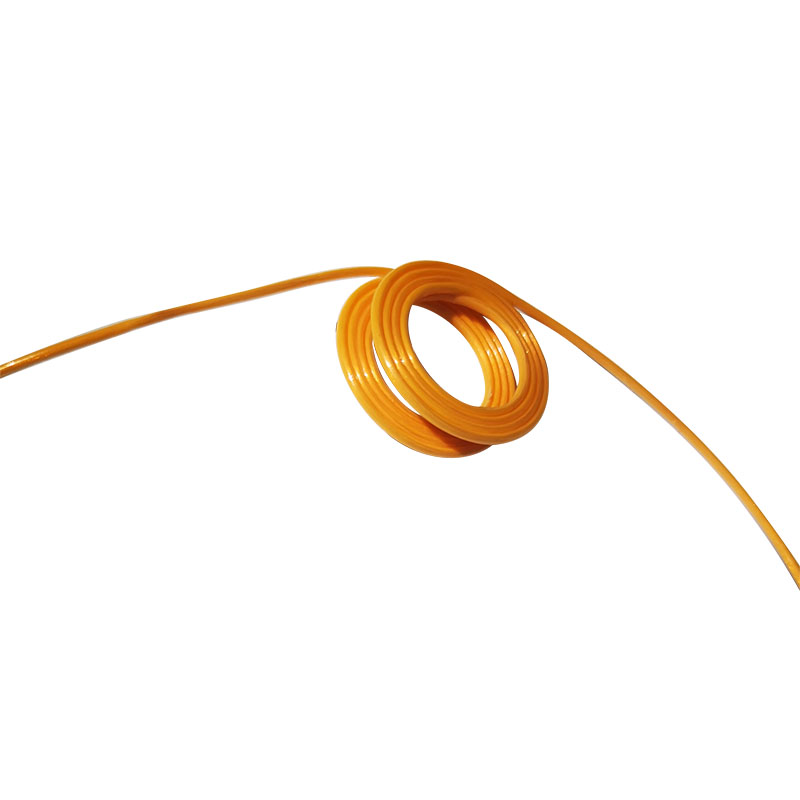

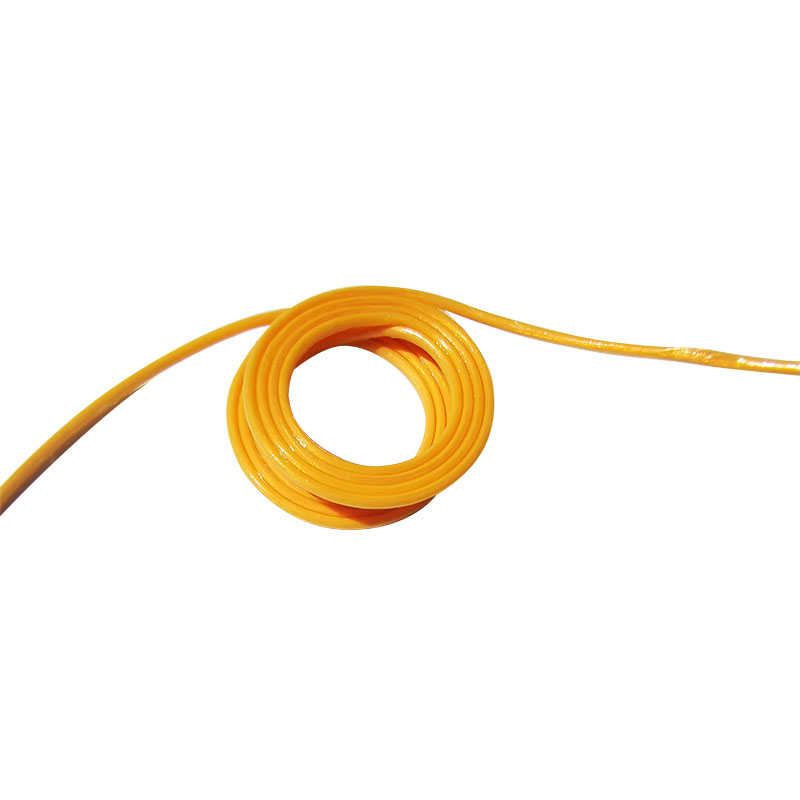

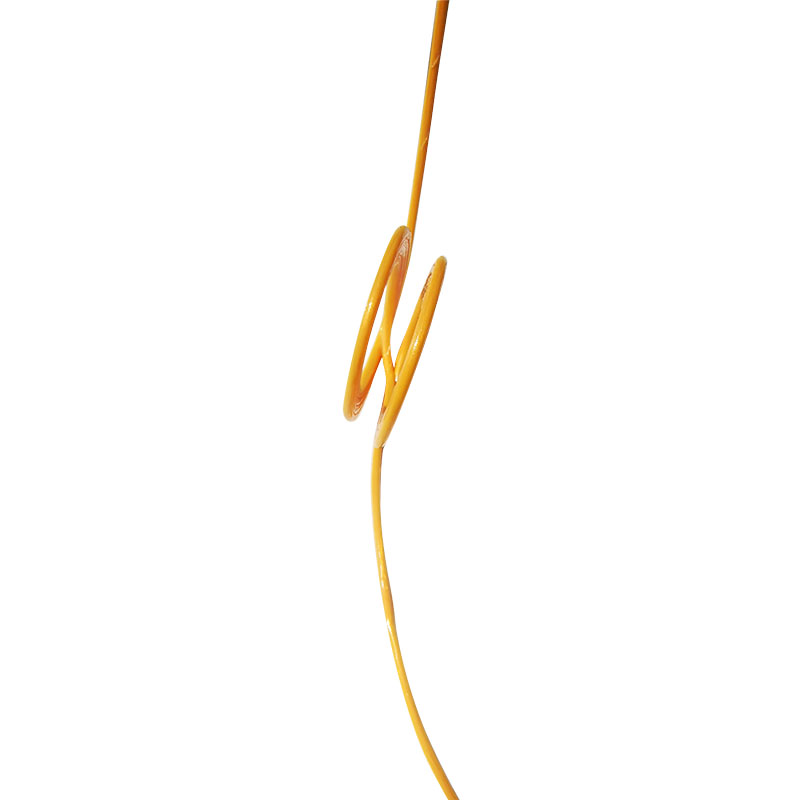

3. 3T-807A multi strand alpha coil winding machine (outer winding machine) uses computer control and servo drive to realize single coil cake and multiple coil cakes are wound together;

4. 3T-807A multi strand alpha coil winding machine (outer winding machine) can be used to debug products of different specifications only by replacing the mold;

5. Multi-station motion, flat coils can be formed and picked up directly on the machine.

6. The windos operation interface and 10 inch LCD display are adopted, with clear and intuitive picture, simple operation and easy learning;

7. It can save the parameters of each specification product, and it is easy and convenient to call.

8. The power system is a high-precision servo motor, which is matched with the CNC control system to make the mechanical system operate more accurately and stably;

Multi Strand Alpha Coil Winding Machine Parameter

serial number	sports event	Technical Parameters
1	Wire Diameter	Ø 0.2-1.2mm stranded wire Coil outer diameter: MaxØ 50mm winding amplitude: Max 20mm
2	Winding direction	Two pins outside the winding out
3	Maximum working stroke of the row of wires	50mm
4	Power of bobbin winding motor	AC servo 1600W
5	Feeding spool travel range	1200mm
6	Coil fixing method	Hot air self-adhesive
7	Number of control axes	4-axis
8	Number of coils	1-100 laps
9	Winding speed (output per hour)	200-900PCS/H will be different according to different wire specifications and turns
10	Operating power	AC 380V
11	Machine specification (L*W*H)	1000*550*1600mm
12	Machine weight	200kg
13	total power	3KW
