The advanced Flat Wire Alpha Coil Continuous Winding Machine, a cutting-edge creation by Santong Weiye, stands at the forefront of advanced winding technology. Developed in collaboration with top-tier suppliers and produced in their state-of-the-art factory, this machine epitomizes precision and efficiency. Santong Weiye's commitment to innovation is evident in every aspect of this continuous winding marvel, ensuring that it meets the highest industry standards. Whether for large-scale manufacturing or intricate applications, the Flat Wire Alpha Coil Continuous Winding Machine is a testament to Santong Weiye's dedication to providing advanced solutions that redefine the capabilities of coil winding machinery.

Five Reasons to Choose Us:

1. rich experience: we have a group of 20 years coil, winding machine and automation equipment experience in the technical team, we have accumulated a wealth of industry experience and technical knowledge. Our professional team is always committed to providing customers with the best quality products and services to ensure that customers get the maximum value in the production process.

2. Quick response: We provide one-stop service to meet customers' individual needs in a short time. Our sales and technical support team is on call 24 hours a day to solve all kinds of problems for customers and ensure the smooth operation of the production line.

3. high-quality products: our production of winding machines with high quality, high performance, high stability and other characteristics, by Huawei, DJI, BYD and other well-known enterprises. Our equipment can not only meet the customer's production needs, but also bring higher production efficiency and product quality.

4. the depth of customization services: we provide a full range of customization services, according to the actual needs of customers, tailored for customers the most suitable winding machine solutions. Our engineers will work closely with customers to ensure that the performance and functionality of the equipment to fully meet customer expectations.

5. perfect after-sales service: we attach great importance to the customer's after-sales service experience. We provide comprehensive after-sales support, including equipment installation, commissioning, training, maintenance and other services. Our professional and technical team will solve problems for customers in the first time to ensure the normal operation and use of equipment.

Flat Wire Alpha Coil Continuous Winding Machine Details

Shenzhen Santong Weiye Technology Co., Ltd. was founded in 2014 in Shenzhen, Guangdong Province, China, which enjoys the title of "Capital of Innovation", and the production factory was moved to Tangxia, Dongguan, from Shenzhen in 2019, the company has a number of technical backbone with more than 15 years of experience in the work of the winding equipment and laser equipment, Shenzhen Santong Weiye Technology Co. Ltd. is a manufacturer of automation equipment and coils integrating R&D, production, sales and service of winding machine equipment and flat coils, our flat coil products, vertical winding machines and automation equipment have good quality and advantageous price, covering part of the European and U.S. markets. We are looking forward to be your long-term partner in China.

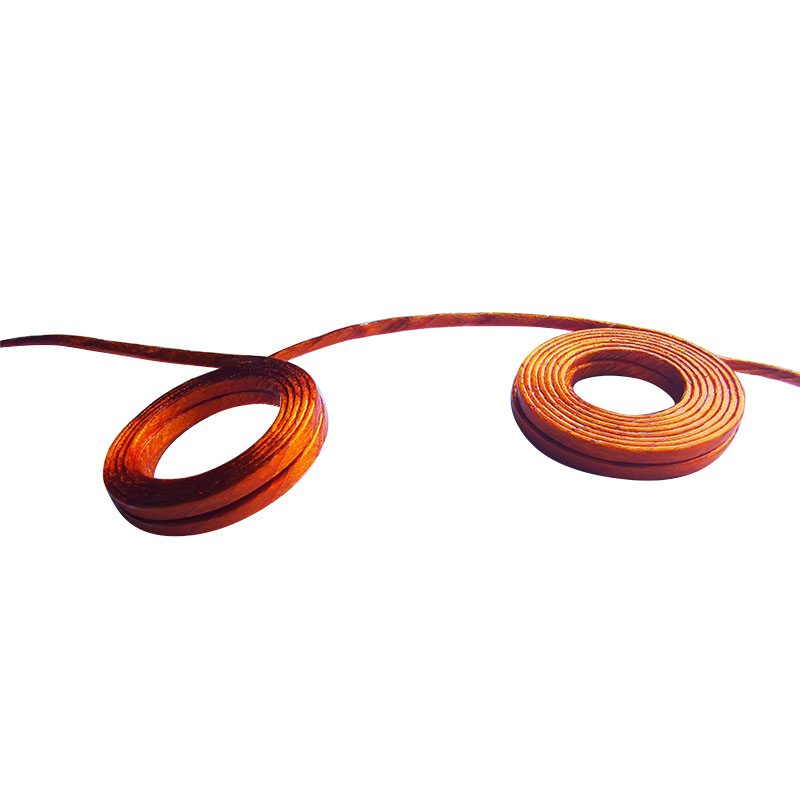

1. 3T-809B flat wire alpha coil continuous winding machine (outer winding machine) is a very practical and effective equipment for making inductance and transformer coils. It can wind flat coils of various shapes and specifications.

2. 3T-809B flat line alpha coil continuous winding machine (outer winding machine) is simple, convenient and fast for debugging, and only needs to replace the mold;

3. 3T-809B flat line alpha coil continuous winding machine (outer winding machine) is controlled by computer and driven by servo, which can produce flat line outer winding products;

4. 3T-809B flat line alpha coil continuous winding machine (external winding machine) can be used to debug products of different specifications only by replacing the mold;

5. Multi-station motion, flat coils can be formed and picked up directly on the machine.

6. The windos operation interface and 10 inch LCD display are adopted, with clear and intuitive picture, simple operation and easy learning;

7. It can save the parameters of each specification product, and it is easy and convenient to call.

8. The power system is a high-precision servo motor, which is matched with the CNC control system to make the mechanical system operate more accurately and stably;

Flat Wire Alpha Coil Continuous Winding Machine Details

serial number	sports event	Technical Parameters
1	Wire Diameter	0.05mm~0.5mm thick flat wire 0.5mm-5.5mm wide flat line Coil outer diameter: MaxØ 50mm winding amplitude: Max 20mm
2	Winding direction	Outside the two pins winding (clockwise & counterclockwise)
3	Maximum working stroke of the row of wires	50mm
4	Power of bobbin winding motor	AC servo 1600W
5	Feeding spool travel range	1200mm
6	Coil fixing method	Hot air self-adhesive
7	Number of control axes	4-axis
8	Number of coils	1-100 laps
9	Winding speed (output per hour)	200-900PCS/H will be different according to different wire specifications and turns
10	Operating power	AC 380V
11	Machine specification (L*W*H)	1000*550*1600mm
12	Machine weight	200kg
13	total power	3KW
