Experience the pinnacle of winding technology with Santong Weiye's Circular Hole Flat Coil Vertical Winding Machine. As a leading supplier, Santong Weiye sets the industry standard by providing advanced solutions straight from the factory.
1. rich experience: we have a group of 20 years coil, winding machine and automation equipment experience in the technical team, we have accumulated a wealth of industry experience and technical knowledge. Our professional team is always committed to providing customers with the best quality products and services to ensure that customers get the maximum value in the production process.
2. Quick response: We provide one-stop service to meet customers' individual needs in a short time. Our sales and technical support team is on call 24 hours a day to solve all kinds of problems for customers and ensure the smooth operation of the production line.
3. high-quality products: our production of winding machines with high quality, high performance, high stability and other characteristics, by Huawei, DJI, BYD and other well-known enterprises. Our equipment can not only meet the customer's production needs, but also bring customers higher production efficiency and product quality.
4. the depth of customization services: we provide a full range of customization services, according to the actual needs of customers, tailored for customers the most suitable winding machine solutions. Our engineers will work closely with customers to ensure that the performance and functionality of the equipment to fully meet customer expectations.
5. perfect after-sales service: we attach great importance to the customer's after-sales service experience. We provide comprehensive after-sales support, including equipment installation, commissioning, training, maintenance and other services. Our professional and technical team will solve problems for customers in the first time to ensure the normal operation and use of equipment.
Shenzhen Santong Weiye Technology Co., Ltd. was founded in 2014 in Shenzhen, Guangdong Province, China, which enjoys the title of "Capital of Innovation", and the production factory was moved to Tangxia, Dongguan, from Shenzhen in 2019, the company has a number of technical backbone with more than 15 years of experience in the work of the winding equipment and laser equipment, Shenzhen Santong Weiye Technology Co. Ltd. is a manufacturer of automation equipment and coils integrating R&D, production, sales and service of coil winding machines and flat coils, our flat coil products, vertical coil winding machines and automation equipment have good quality and advantageous price, covering part of the European and U.S. markets. We are looking forward to be your long-term partner in China.

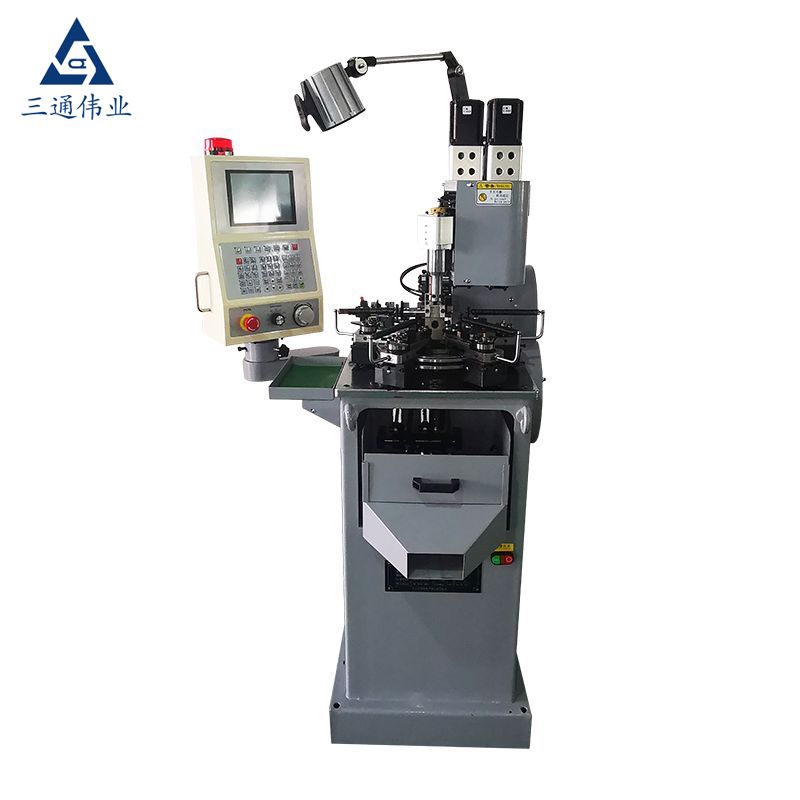

1. 3T-801 round hole flat coil vertical winding machine is a very practical and effective equipment for making inductance and transformer coils. It can wind flat coils of various shapes and specifications.
2. 3T-801 round hole flat coil vertical winding machine is easy, convenient and fast to debug, just need to replace the mold;
3. 3T-801 round hole flat coil vertical winding machine is controlled by computer and driven by servo. It can produce various flat coil products with a thickness of 0.1mm to 2.0mm and a width of 0.5mm to 6.0mm (the sectional area of the original wire when the flat wire winding machine is winding is 4mm ² Within);
4. The spindle is processed by high-precision CNC lathe and vacuum precision straightening treatment is carried out, the precision is less than 0.01mm, and the thin production line is more stable;
5. 3T-801 round hole flat coil vertical winding machine has multi station control for movement, which can automatically shape the flat coil on the machine;
6. 3T-801 round hole flat coil vertical winding machine adopts windos operation interface and 10 inch LCD screen, with clear and intuitive picture, simple operation and easy learning;
7. It can save the parameters of each specification product, and it is easy and convenient to call.
8. The power system is a high-precision servo motor, which is matched with the CNC control system to make the mechanical system operate more accurately and stably;
9. 3T-801 round hole flat coil vertical winding machine is controlled from the design source, which is convenient for operation and commissioning personnel;
serial number |
sports event |
Technical Parameters |
1 |
Wire Diameter |
Thickness (0.1~2.0) * width (0.5~6.0) can produce flat line with sectional area of 4 mm ² Within, width/thickness ratio<15 times |
2 |
Winding direction |
Clockwise vs. Counterclockwise |
3 |
Maximum working stroke of the row of wires |
40mm |
4 |
Power of bobbin winding motor |
AC servo 750W |
5 |
Winding spool setting range |
0.1°--359.9° |
6 |
Camshaft motor power |
AC servo 1500W |
7 |
Winding spool setting range |
0.1°--359.9° |
8 |
Power of spool motor |
AC servo 750W |
9 |
Spool setting range |
0.1°--359.9° |
10 |
Number of coils |
1-100 laps |
11 |
Winding speed (output per hour) |
350 --- 1200PCS/H will vary according to the wire specifications and turns |
12 |
Operating power |
AC 220V |
13 |
Machine specification (L*W*H) |
1750*980*1650mm |
14 |
Machine weight |
400kg |
15 |
total power |
2.4KW/3KW |
