The Circular Hole Flat Coil Vertical Continuous Winding Machine from Santong Weiye exemplifies innovation in coil winding technology. Established in 2014 in Shenzhen, Guangdong, China, and later relocating to Tangxia, Dongguan, our company brings over 20 years of collective expertise in coil, winding machine, and automation equipment. We are committed to providing exceptional quality and services to maximize customer value in the production process.

Key Features of the Circular Hole Flat Coil Vertical Continuous Winding Machine:

Versatile Winding Capability: The machine is designed to efficiently wind circular hole flat coils of various shapes and specifications, offering versatility in coil manufacturing.

User-Friendly Operation: With easy and convenient debugging, the machine ensures a swift setup process. Mold replacement simplifies operation, contributing to efficient and hassle-free use.

Computer-Controlled Precision: The machine is computer-controlled and driven by servo technology, enabling precise winding. It can produce flat coil products with a thickness range of 0.1mm to 2.0mm and a width range of 0.5mm to 6.0mm.

Expanded Testing Range: Featuring a mainframe travel of 260mm, the machine accommodates higher flat coil products, providing R&D personnel with an extended testing range.

Five Reasons to Choose Us:

1. Extensive Expertise: With two decades of hands-on experience in coil, winding machine, and automation equipment, our technical team possesses profound industry knowledge. Committed to delivering superior quality, our professionals ensure customers derive maximum value from our products and services during their production processes.

2. Swift Support: Offering a streamlined one-stop service, we prioritize quick responses to meet individual customer needs. Our sales and technical support team is available 24/7, dedicated to solving diverse problems and ensuring the seamless operation of production lines.

3. Premium Quality Products: Our winding machines are synonymous with excellence, favored by renowned enterprises like Huawei, DJI, and BYD. Beyond meeting production needs, our equipment enhances efficiency and elevates product quality for our valued customers.

4. Tailored Solutions: Providing comprehensive customization services, we craft the most suitable winding machine solutions based on our customers' actual needs. Our collaborative approach with customers ensures equipment performance and functionality fully align with and exceed expectations.

5. Exceptional After-Sales Support: Placing utmost importance on the customer's after-sales service experience, we offer comprehensive support, including equipment installation, debugging, training, and maintenance services. Our professional technical team swiftly addresses issues to ensure the equipment's normal operation and usage.

Product Details

Shenzhen Santong Weiye Technology Co., Ltd., established in 2014 in the innovation hub of Shenzhen, Guangdong, China, embraces the spirit of the "Capital of Innovation." In 2019, our production facility strategically relocated from Shenzhen to Tangxia, Dongguan, marking a significant step in our growth journey. Boasting a team of technical experts with over 15 years of experience in winding and laser equipment, we are a comprehensive manufacturer of automatic equipment and coils, dedicated to research, development, production, sales, and service of winding machine equipment and flat coils, specifically our vertical flat coil products.

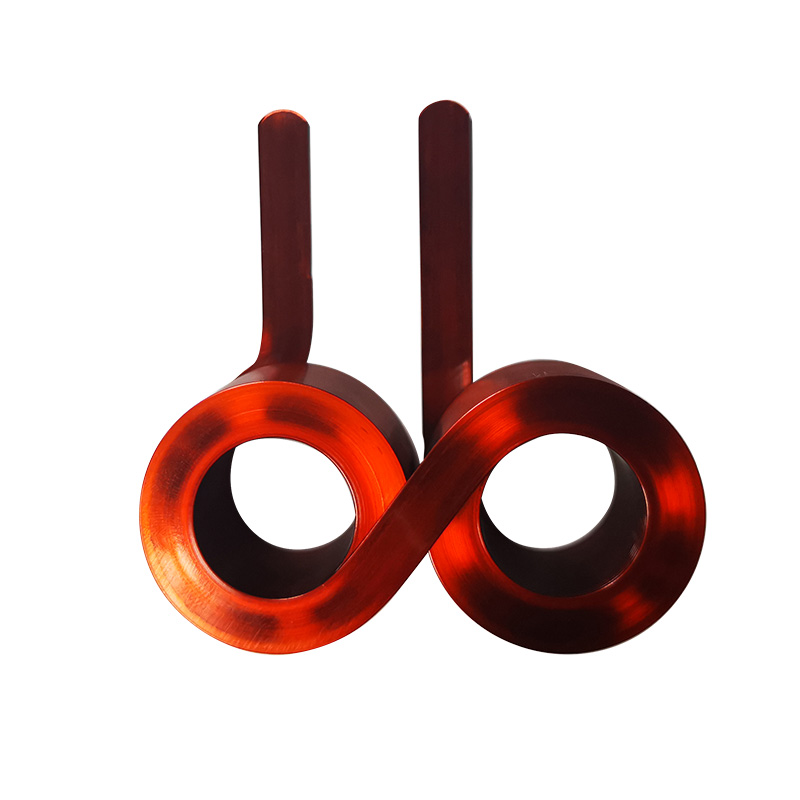

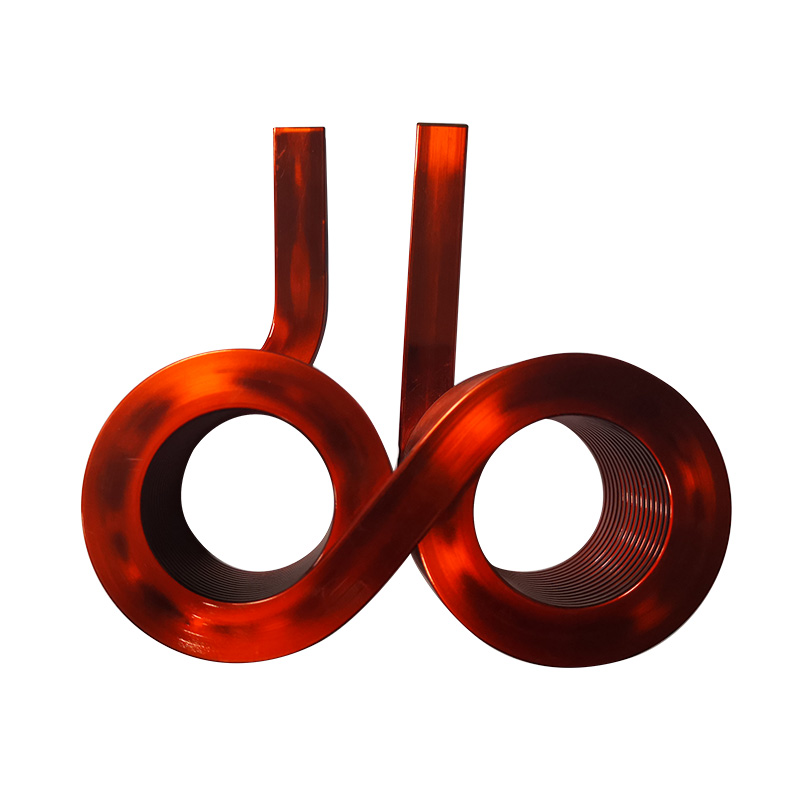

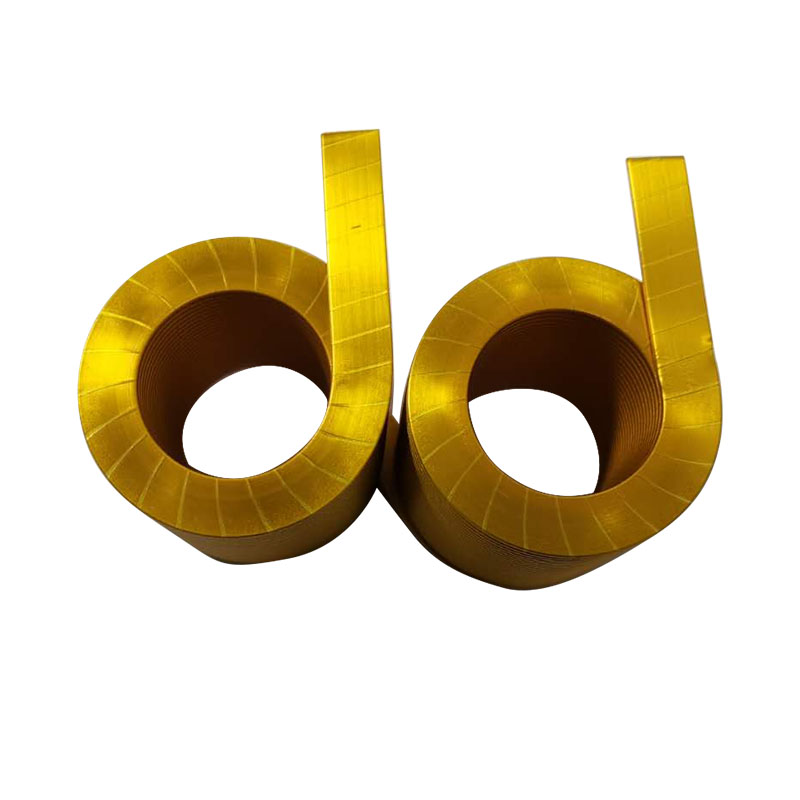

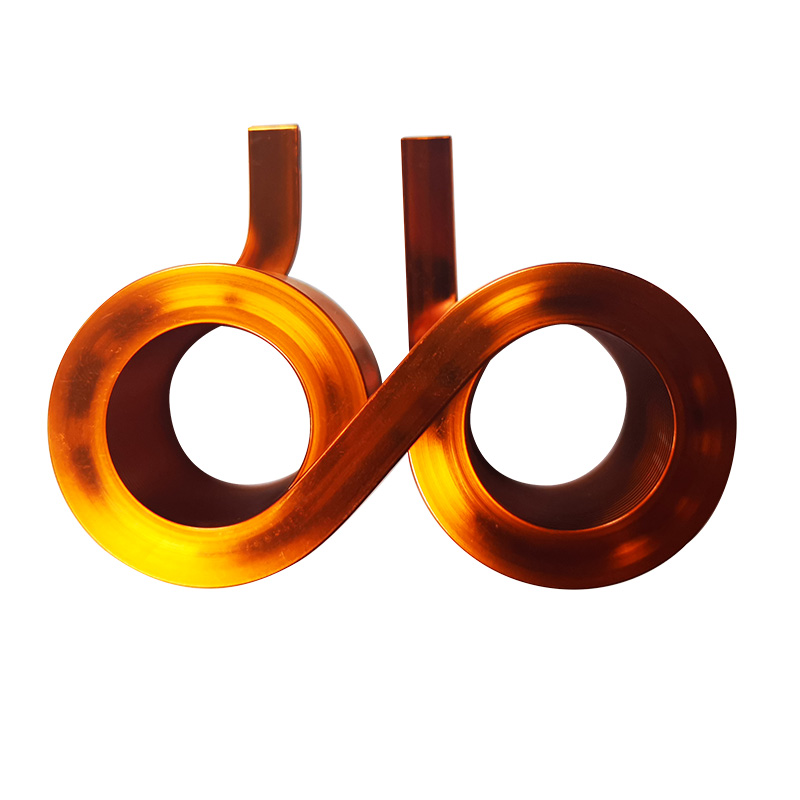

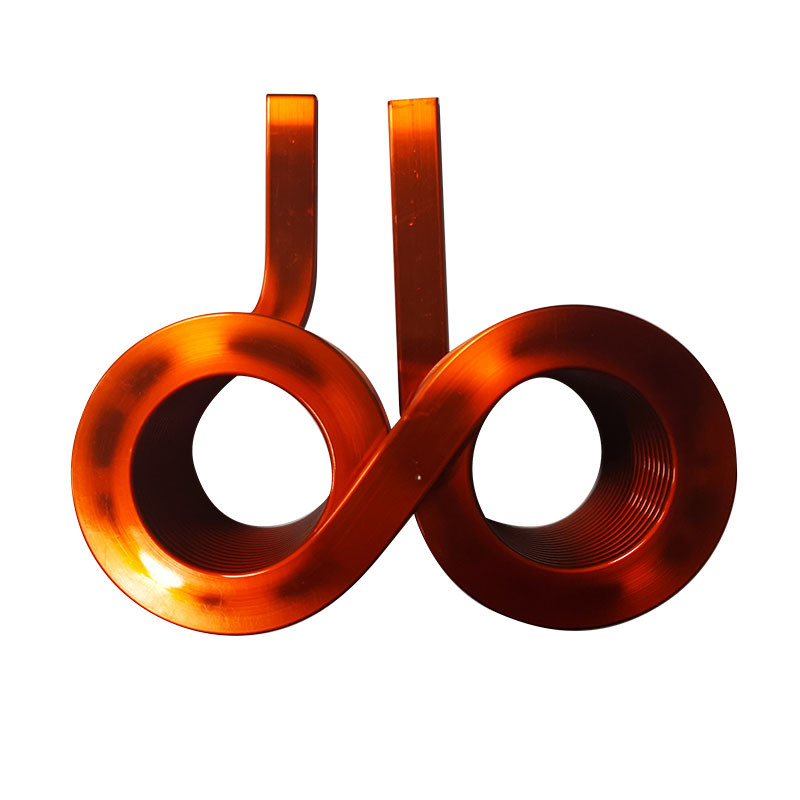

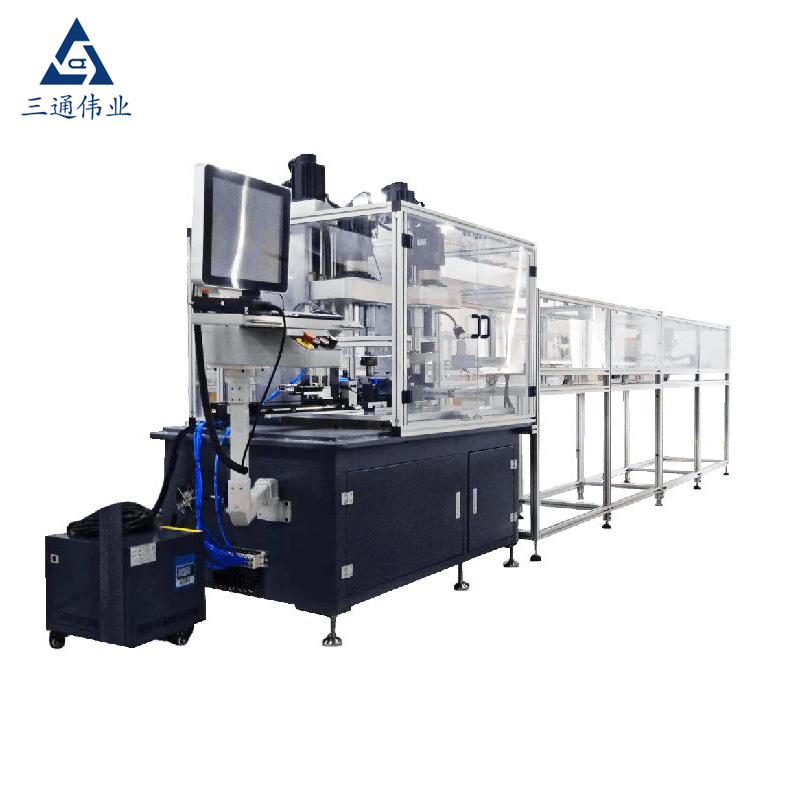

1. The 3T-808 round hole flat coil vertical continuous winding machine is a highly practical and effective tool for crafting inverter inductance round hole flat coils, accommodating various shapes and specifications with ease.

2. This machine offers user-friendly and swift debugging, requiring only mold replacement for convenient operation.

3. Controlled by computer and driven by servo, the 3T-808 winding machine can produce flat coil products of various specifications, ranging from 0.1mm to 2.0mm in thickness and 0.5mm to 6.0mm in width.

4. With a mainframe travel of 260mm, the machine can handle higher flat coil products, expanding the testing range for R&D personnel.

5. The independent operation of the two machine heads allows for easy shifting and fine-tuning, enhancing the tuning engineer's efficiency and broadening the coil winding size range.

6. Fully automatic, the machine streamlines operations, allowing one person to manage multiple devices.

7. Featuring a Windows operation interface and a 10-inch LCD display, the machine ensures clear, intuitive visuals, simple operation, and easy learning.

8. It allows for the storage of adjustment parameters for various product specifications, facilitating convenient recall.

9. The power system incorporates an imported high-precision servo motor, coupled with the CNC control system, ensuring the mechanical system's accurate and stable operation. Santong Weiye's commitment to innovation and efficiency is embodied in the 3T-808 round hole flat coil vertical continuous winding machine, offering a seamless and advanced solution for your winding needs.

Product Parameter

serial number	project	technical parameter
1	Machining line diameter	Thickness (0.2~6.0) * width (0.5~10.0), flat line section area of 50 mm can be produced ² Within, width/thickness ratio<15 times
2	direction of winding	Clockwise and counterclockwise
3	Maximum working stroke of flat cable	260mm
4	Bobbin motor power	AC servo 2000W
5	Setting range of bobbin	0.1°--359.9°
6	Lifting shaft motor power	AC servo 2000W
7	Setting range of lifting shaft	0-240mm
8	Feed spool motor power	AC servo 750W
9	Setting range of feed spool	0-150mm
10	Number of windings	1-100 laps
11	Winding speed (output per hour)	50 --- 150PCS/H varies according to the wire specifications and turns
12	working power supply	AC 380V
13	Machine specifications (length * width * height)	11200*1300*1900mm
14	Machine weight	1650kg
15	gross power	10.65KW (can be customized according to different requirements)
