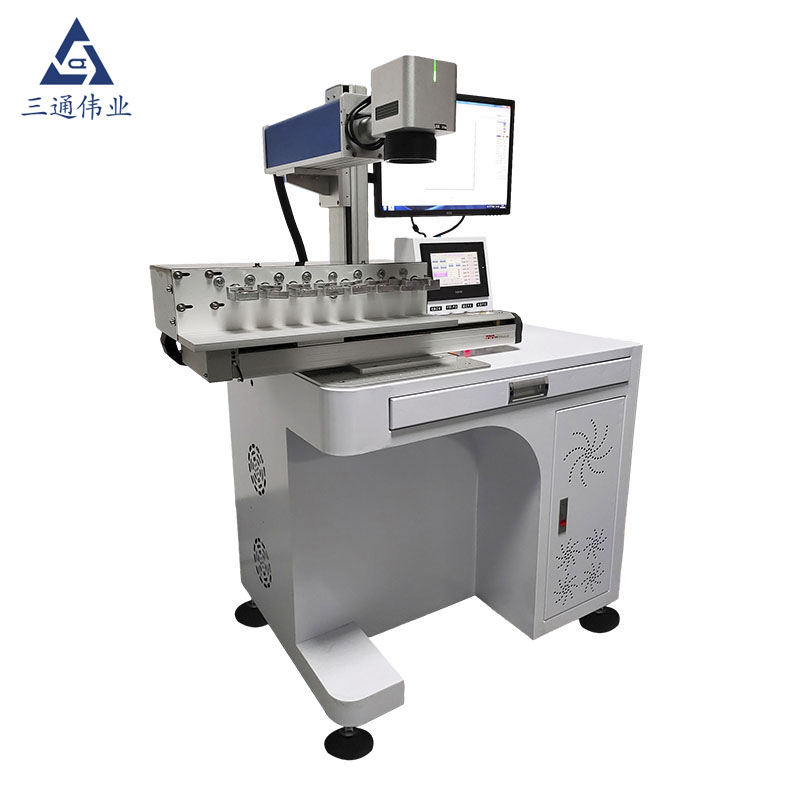

Elevate your marking precision with Santong Weiye's High Precision Visual Automatic Laser Marking Machine. As an advanced supplier and factory rooted in the innovative landscape of Shenzhen, we bring cutting-edge technology to the forefront. Our team, equipped with over 15 years of expertise, has crafted a machine that redefines standards in precision marking.
This advanced laser marking machine showcases Santong Weiye's commitment to excellence. Specializing in automation equipment, our offerings include high-precision visual marking solutions. With superior quality and advanced features, our machines have gained recognition in the global market.
Experience the future of industrial technology with Santong Weiye as your trusted partner. Our High Precision Visual Automatic Laser Marking Machine represents innovation at its finest, making us the preferred choice for businesses seeking advanced and precise marking solutions.
3T-903 flat wire multi axis fiber laser paint stripper
1. 3T-903 flat line multi axis optical fiber laser paint stripper has high processing efficiency. The laser beam under computer control can move at a high speed (speed up to 4-6 m/s), and the processing can be completed in seconds. One section of 2.4 * 0.24 5mm long flat wire can be peeled off within 0.5 seconds.
2. 3T-903 flat wire multi axis fiber laser paint stripper is easy to operate, and can easily peel off paint with various special requirements that are difficult to be completed by traditional processes;
3. 3T-903 flat wire multi axis optical fiber laser paint stripper is completely non mechanical contact processing, which does not produce any mechanical extrusion or mechanical stress on processing materials, and has good processing quality;
4. 3T-903 flat line multi axis fiber laser paint stripper can precisely control the paint stripping position, size and depth, with high repeated positioning accuracy and good consistency;
5. 3T-903 flat wire multi axis optical fiber laser paint stripper The tensile strength of wires of various models and specifications after paint stripping is greater than that of wires after thermal stripper thermal stripping;
6. 3T-903 flat wire multi axis optical fiber laser paint stripper has no wire drawing or irregularity in the inner and outer insulation layers of the conductor after paint stripping;
7. There is no change in the insulation property of the wire before and after stripping the paint.
Lacquer stripping process for flat wires, round wires, enameled wires, and various other wires.
Flat wire stripping, flat wire de-varnishing
1. peeling size positioning accuracy, peeling effect is good, high efficiency and simple operation, the traditional process is difficult to complete a variety of special requirements of the peeling process can be easily completed.
2. completely non-mechanical contact processing, the processing material does not produce any mechanical extrusion The quality of machining is good because of the mechanical stress.
3. The electro-optic conversion efficiency is up to 50%, and the power consumption of the whole machine is less than 1500W.
Model parameters |
3T-903A |
3T-903B |
3T-903C |
laser model/wavelength |
1064nm |
||
laser source |
mirror-doped optical fibers |
||
Maximum laser power |
60W |
100W |
200W |
Beam quality M |
1.4 |
1.6 |
1.8 |
Q-switching frequency |
0-50KHZ |
||
marking the smallest character |
0.15mm |
0.15mm |
0.15mm |
The minimum line width of the marker |
25um |
25um |
25um |
Marking speed |
400 characters/second |
500 characters/second |
600 characters/second |
Repeatability |
0.001mm |
0.001mm |
0.002mm |
Engraving range |
110*110mm |
||
exterior dimensions |
980*680*1450mm |
||
Overall weight |
200Kg |
||
power requirements |
220V/50Hz/12A |
||
Cooling method |
Air-cooled |
||
Whole machine power |
600W |
1KW |
1.5KW |
