Discover unparalleled innovation with Santong Weiye's Flat Wire Multi Axis Laser Paint Peeling Machine. As an advanced supplier and factory with roots in the "Capital of Innovation," Shenzhen, we've seamlessly integrated cutting-edge technology into our offerings. Our team, boasting over 15 years of expertise, has crafted this machine to redefine standards in the industry.
This advanced Flat Wire Multi Axis Laser Paint Peeling Machine is a testament to our commitment to excellence. Santong Weiye stands at the forefront of automation equipment, specializing in flat wire vertical winding machines, laser paint stripping machines, and various automation equipment. With superior quality and competitive pricing, our solutions have made a mark in the global market.
Explore the future of industrial technology with Santong Weiye as your trusted partner. Our Flat Wire Multi Axis Laser Paint Peeling Machine exemplifies innovation, making us the go-to choice for businesses seeking advanced solutions.
Founded in 2014 in Shenzhen, Guangdong Province, China, known as the "Capital of Innovation," Shenzhen Santong Weiye Technology Co., Ltd. proudly carries the torch of ingenuity. In 2019, our production facility transitioned from Shenzhen to Tangxia, Dongguan, in line with the region's industrial dynamics.
Our team comprises technical experts with over 15 years of experience in winding equipment and laser technology. We stand as a comprehensive automation equipment and coil manufacturer, seamlessly integrating research, development, production, sales, and service. Specializing in flat coil vertical winding machines, laser paint stripping machines, and various automation equipment, our offerings boast excellent quality and competitive pricing.
With a successful presence in parts of the European and U.S. markets, we invite you to explore a lasting partnership with us. Shenzhen Santong Weiye Technology Co., Ltd. is poised to be your trusted and long-term partner in China.

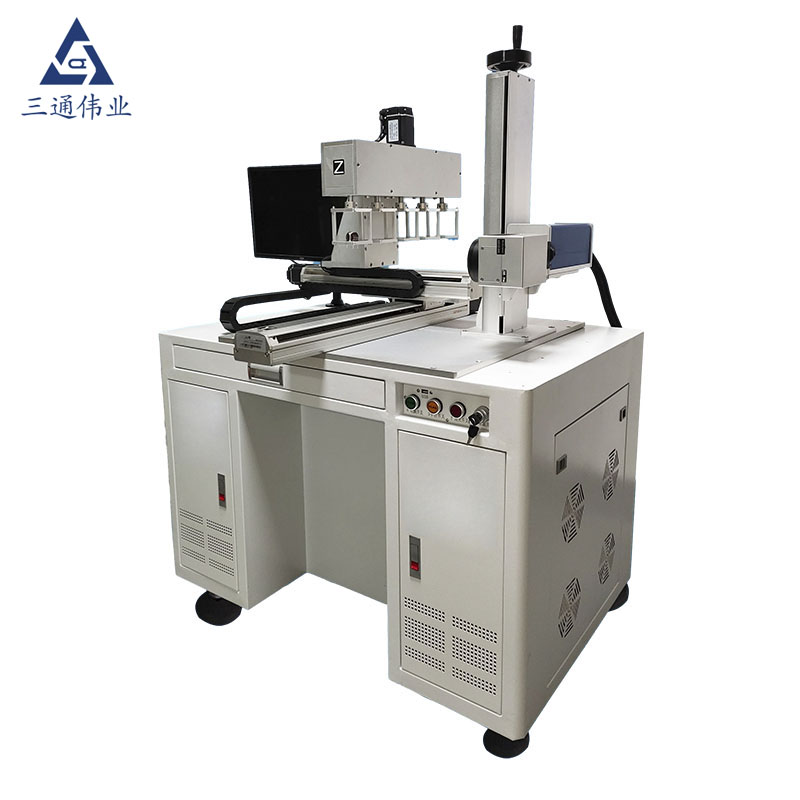

3T-904 optical fiber laser paint stripper for magnetic loop coil
1. 3T-904 magnetic ring coil optical fiber laser paint stripper is equipped with a 5-axis rotating station, which has high processing efficiency. The laser beam under computer control can move at a high speed (the speed can reach 4-6 meters/second), and the processing can be completed in seconds.
2. 3T-904 magnetic ring coil optical fiber laser paint stripper is easy to operate, and can easily peel off paint with various special requirements that are difficult to be completed by traditional processes;
3. 3T-904 magnetic ring coil optical fiber laser paint stripper is completely non mechanical contact processing, which does not produce any mechanical extrusion or mechanical stress on processing materials, and the processing quality is good;
4. 3T-904 magnetic loop coil optical fiber laser paint stripper can precisely control the paint stripping position, size and depth, with high repeated positioning accuracy and good consistency;
5. 3T-904 magnetic loop coil optical fiber laser paint stripper after paint stripping, the tensile strength of various models and specifications of the wire is greater than that of the wire after hot stripping of the heat stripper;
6. After the 3T-904 magnetic loop coil optical fiber laser paint stripper peels the paint, the inner and outer insulation layers of the conductor shall be free of wire drawing and irregularity;
7. The insulation performance of the wire before and after the 3T-904 magnetic loop coil optical fiber laser paint stripper has no change.
Metal and a variety of non-metallic materials, high hard alloy, oxide, electroplating coating, ABS, epoxy resin, ink, engineering plastic materials, etc.
Paint stripping of magnetic ring coil, paint stripping of flat wire, marking of LOGO and date on the surface of magnetic components (inductance, transformer, etc.)
1. Peeling size positioning accuracy, peeling effect is good, high efficiency and simple operation, the traditional process is difficult to complete All kinds of special requirements of the peeling process can be easily accomplished.
2. completely non-mechanical contact processing, the processing material does not produce any mechanical extrusion or mechanical stress, processing quality is good.
3. The electro-optic conversion efficiency is up to 50%, and the power consumption of the whole machine is less than 2000W.
Model parameters |
3T-904A |
3T-904B |
3T-904 |
laser model/wavelength |
1064nm |
||
laser source |
mirror-doped optical fibers |
||
Maximum laser power |
100W |
200W |
300W |
Beam quality M |
1.6 |
1.8 |
|
Q-switching frequency |
20-500KHZ |
||
marking the smallest character |
0.3mm |
0.3mm |
03mm |
The minimum line width of the marker |
0.10mm |
0.15mm |
0.3mm |
Marking speed |
400 characters, 1 second |
500 characters for 1 second |
600 characters per second |
Repeatability |
0.001mm |
0.002mm |
0.003mm |
Engraving range |
110*110mm |
||
exterior dimensions |
980*680*1200mm |
||
Overall weight |
200Kg |
||
power requirements |
220V/50Hz |
||
Cooling method |
Air-cooled |
||
Whole machine power |
1KW |
1.5KW |
2KW |
